FMC and FTD External authentication with Cisco ISE(Using Microsoft Active Directory as the Backend)

January 24, 2026 / Balaji Bandi / 0 Comments

Part of CCIE Sec Lab Learning – Additional like to add FMC external Authentication testing.

Centralized authentication is one of those things that feels “optional” until the day it absolutely isn’t. Local FMC users scattered across environments don’t scale, don’t audit well, and don’t survive staff turnover gracefully.

This post walks through a clean, enterprise-grade design for authenticating Cisco FMC and FTD administrators via Cisco ISE, with Microsoft Active Directory as the identity source.

Why Use ISE for FMC / FTD Authentication?

At first glance, FMC can authenticate directly against AD or LDAP. So why put ISE in the middle?

Because ISE gives you:

Centralized policy control (who gets access, and how)
Consistent authentication logic across network, VPN, firewall, and admin access
Role-based access control mapped cleanly to FMC roles
AAA auditing in one place
Flexibility to later add MFA, posture, or certificate-based auth

Think of ISE as the policy brain, and AD as the identity store.

Lab Topology :

Pre-Requisites :

Infrastructure

Cisco FMC (virtual) / FTD (Virtual) – using here 7.7 Latest Version
Cisco ISE (3.x)
Microsoft Active Directory domain (using Windows 2019)
Time synchronization (NTP) across all systems (i am using IOL for NTP – get External from Public NTP)

Connectivity

FTD register (or Managed) with FMC
FMC ↔ ISE: RADIUS (UDP 1812/1813)
ISE ↔ AD: LDAP / Kerberos
DNS resolution working everywhere

Accounts

AD admin account (for ISE AD join)
FMC admin access (local for setting external Authentication)
ISE admin access (Local Account to Manage IS)
AD Accounts for FMC GUI and CLI / FTD cli (Admin Account and Read Only account)

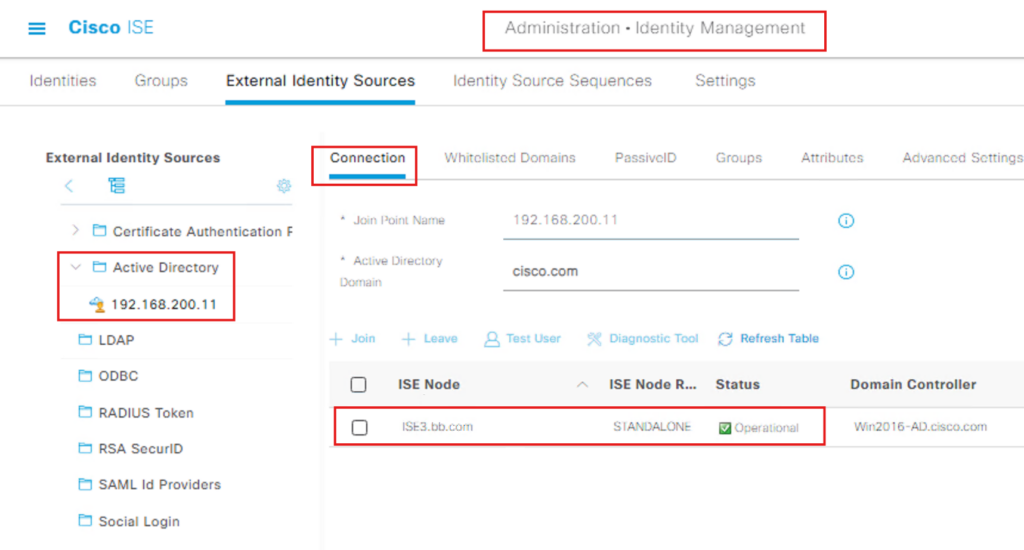

Integrate ISE with Active Directory

On Cisco ISE:

Navigate to
Administration → Identity Management → External Identity Sources → Active Directory
Join ISE to the domain
Verify:
- User authentication works
- AD groups are visible

We need to get AD Groups for Admin and Read only Users :

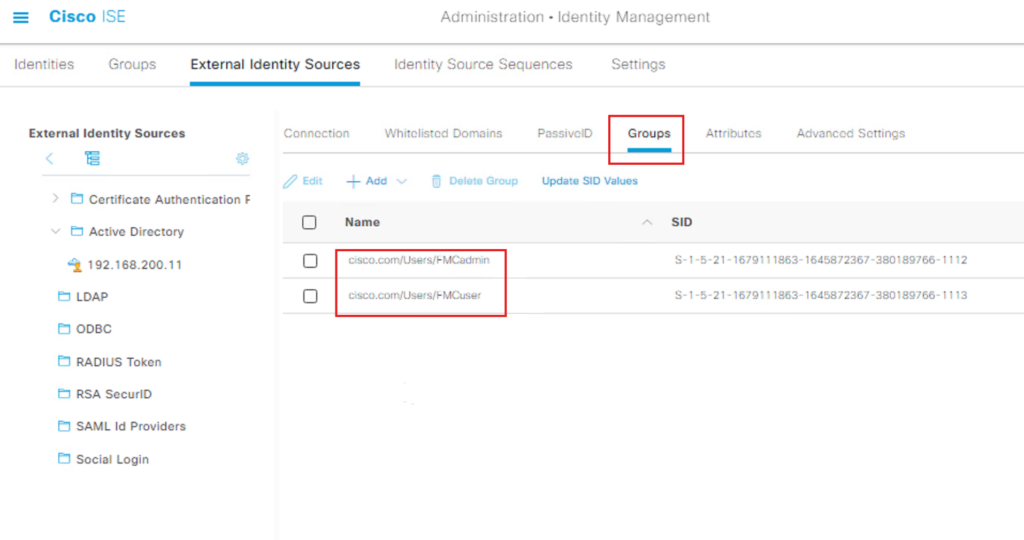

Import External Groups
Before you can write a policy, ISE needs to “know” about the specific groups in your AD.
Navigate to Administration > Identity Management > External Identity Sources.
Select Active Directory and choose your Join Point.
Click the Groups tab.
Click Add > Select Groups from Directory.
Click Retrieve Groups.
Check the boxes for the groups you want to use (e.g., FMCadmin and FMCuser) and click OK.
Save the configuration.

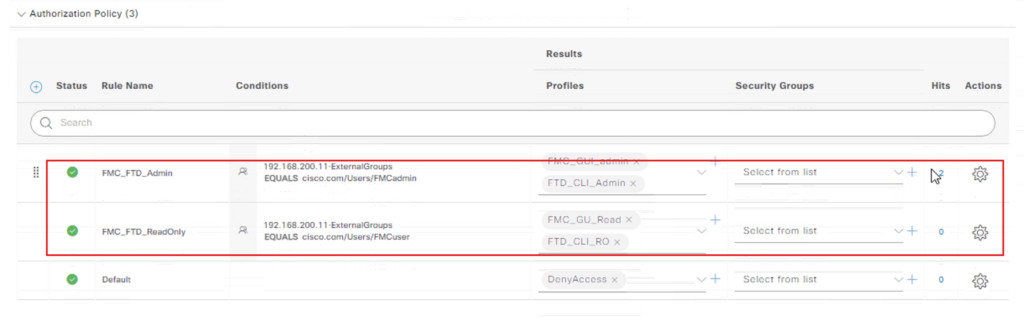

Configure the Authorization Policy
Now that the groups are imported, you can reference them in your Policy Set.

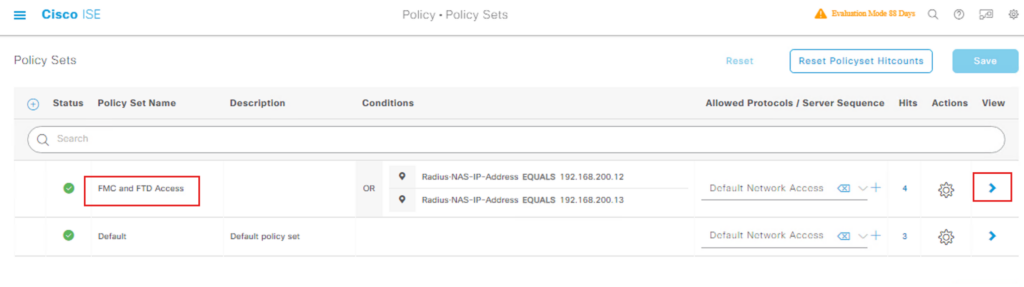

Navigate to Policy > Policy Sets.
Select the Policy Set (in this example – FMC and FTD Access) click on >

Open the Authorization Policy section.
Click the + icon to create a new rule.
In the Conditions column, click the + to open the Condition Studio.
Click Create New Condition.
Select the Attribute Selector (the icon that looks like a folder/dictionary).
Choose your AD Join Point (e.g., MyAD:ExternalGroups).
Select the Equals operator and choose the group imported.
Click Use.
